Plated diamond: plated products can improve the holding power of diamond (CBN), slow down the thermal shock, protect diamond and CBN from oxidation and graphitization, and prolong the service life of products. They are mainly used for resin bonding agents, dry and wet grinding products and diamond wires.
鍍鎳
1、 Advantages of nickel plated diamond:
1) Improve the bonding force between diamond and binder and reduce the falling off of diamond particles from the matrix;
2) Isolation and protection: during high-temperature sintering and high-temperature grinding, the coating can isolate and protect the diamond from carbonization or oxidation;
3) Improve the strength of diamond.
鍍鈦
1、 Advantages of titanium plated diamond:
1) Improve the holding force of matrix on diamond particles and prolong the service life of diamond tools;
2) Prevent the propagation of cracks on the surface of diamond and the generation of new cracks, and improve the strength of diamond;
3) Isolation and protection: during high-temperature sintering and high-temperature grinding, the coating can isolate and protect the diamond from carbonization or oxidation.
鍍銅
1、 Advantages of copper plated diamond:
1) After copper plating, the compressive strength of diamond increases significantly and the surface physical and chemical properties are greatly improved;
2) It weakens the possible adverse effects of the shortcomings of diamond fixation;
3) It creates preconditions for the production of resin bonded and metal bonded diamond tools with good performance and long service life.
2、 Plated particle size range: 30 / 35-325 / 400

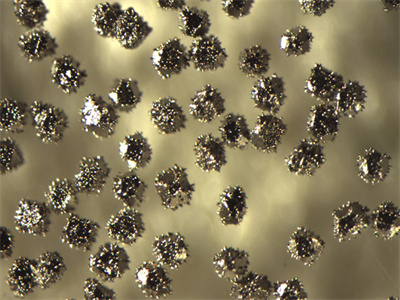

鍍鎳金剛石（電鍍）
Product Features:
1. Improve the bonding strength between diamond and abrasive bond and slow down the falling off speed of diamond particles.
2. The diamond surface has thorn like protrusions, which improves the mechanical holding force of diamond, has excellent thermal conductivity and effectively improves the service life of products.
3. Isolation and protection. During high-temperature sintering and high-temperature grinding, the coating can isolate and protect the diamond, prevent graphitization, oxidation or other chemical changes, and maintain the characteristics of the diamond.
Product Application:
Improve the service life of products.
Suitable for resin bonded products.
Particle size of micro powder:
● common proportion of electroplating: 30n, 56n, 60N.

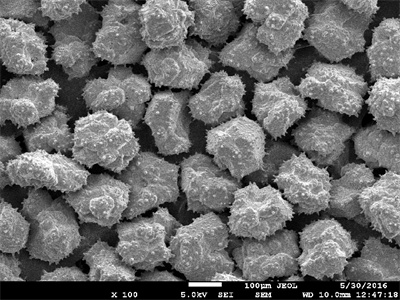

鍍鎳金剛石（化學鍍）
Product Features
1. The surface of the product is honeycomb, uneven and has stronger holding force;
2. Good coating performance and uniform coating thickness;
3. The electroless coating has low porosity, high density and strong corrosion resistance;
4. No exposed plating and few continuous crystals;
5. It has strong self sharpening and can maintain good grinding efficiency
Product Application
1. All functions of electroplated diamond;
2. In terms of functionality, improve the wear resistance, conductivity, lubricity and corrosion resistance of processed workpieces, and further improve the service life of products.
Electroless plating can be widely used in aerospace, automobile industry, chemical industry, oil and gas, food processing, mining industry, military industry, electronic computer, machinery, light industry, printing press, medical equipment and resin bond products.
Particle size of micro powder:
● common proportion of electroless plating: 30n, 56n, 60N.
It can also process chromium plating, silicon plating, cobalt plating, tungsten plating, corundum diamond plating, etc. according to the specific needs of customers' products
